Mandelbrot Image Black & White Mandelbrot Image Color

Introduction

A Mandelbrot set is defined as the set of all complex numbers ${c}$ for which the generator function:

$f_c(z) = z^2 + c$

remains bounded (i.e., does not diverge to $\pm \infty$). We start with $z=0$ and iteratively evaluate $f_c$ as follows:

$[f_c(0), f_c(f_c(0)), f_c(f_c(f_c(0))),\dots]$

Defining Divergence

Traditionally, divergence is defined by a threshold of the magnitude of the current element in the sequence. For example, if we choose a threshold of $f_{max} = 10$, then the sequence diverges at the $i^{th}$ iteration if $ f_c(i) > f_{max} = 10$.

Methods

Approach A: Fine-Grained Parallelization

  • Pixel-level parallelization, each thread evolves the Mandelbrot set for differnt starting values $c$ in the complex plane.
  • Poor scaling due to critical access of shared data buffer.

Approach B: Parallel Frame Generation for Zoom Animation

  • Frame-by-frame parallelization when generating multiple frames of the Mandelbrot set at different scales to create a movie (i.e. zooming into one point of the plane).
  • Each frame is assigned to a different thread for parallel processing.
  • The generated frames are then compiled into a video.
  • Much more efficient scaling, each thread works on independent chunck of data

Generated Outputs

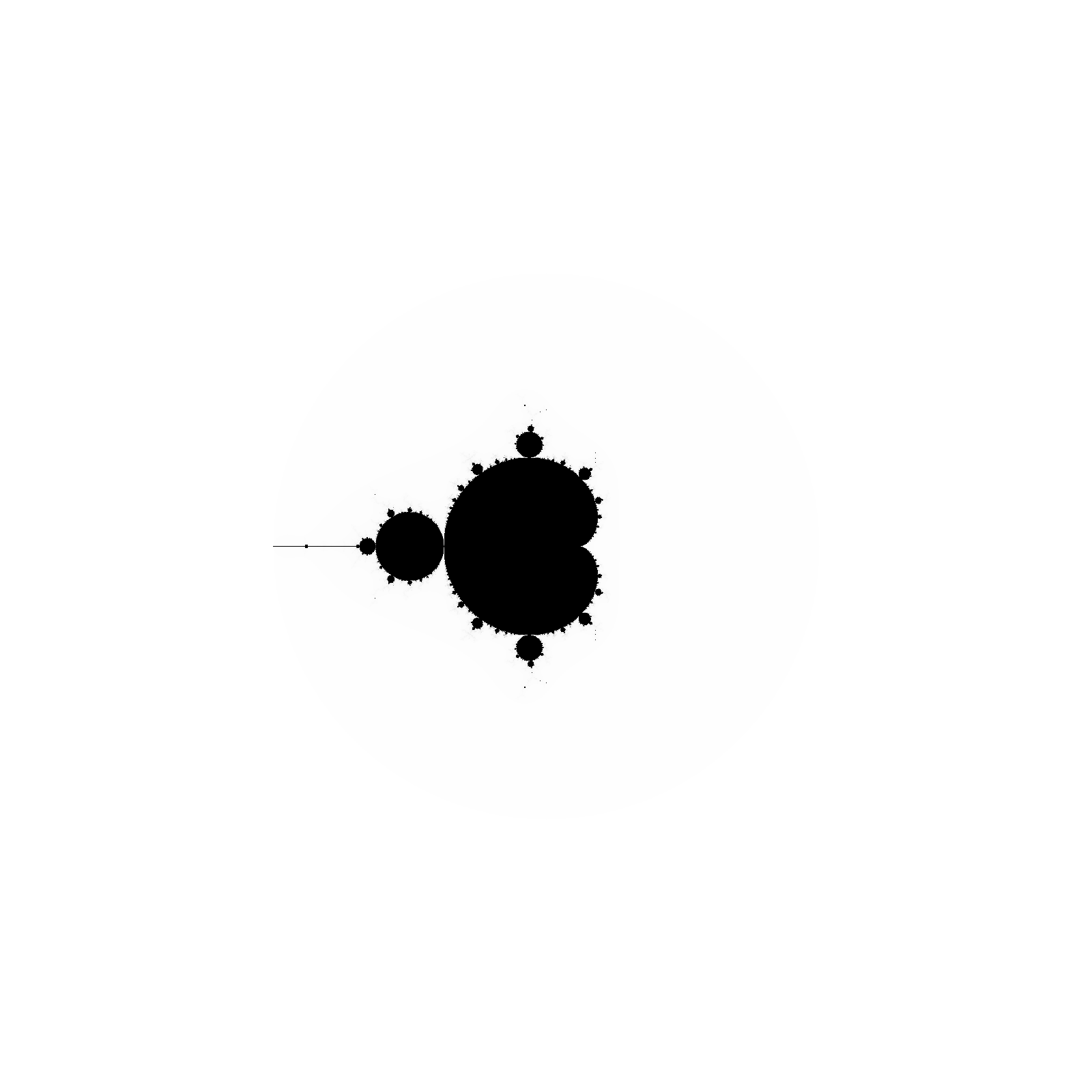

Mandelbrot Image

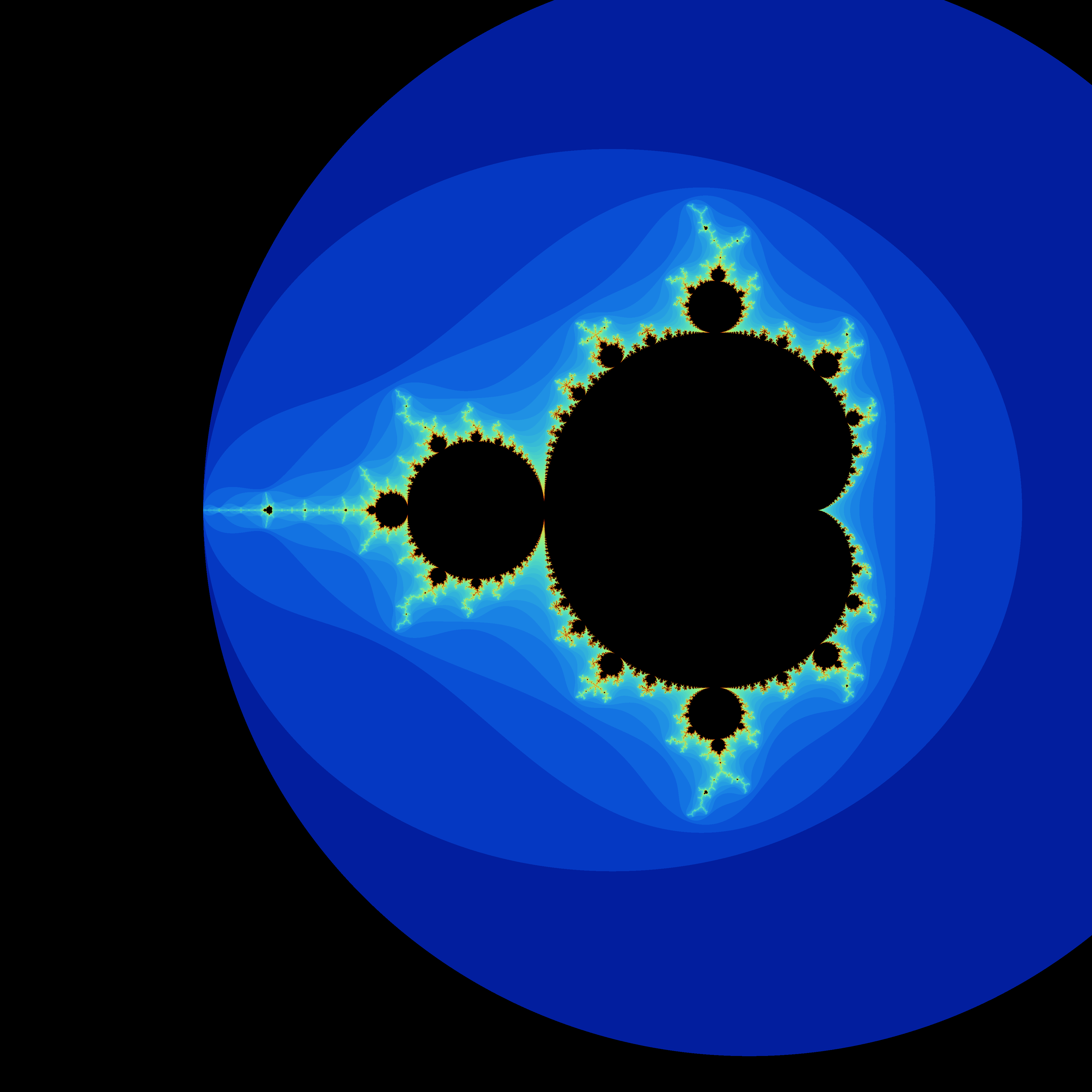

Mandelbrot Image Color

Mandelbrot Zoom Animation

Generated animation of the Mandelbrot set zooming into specific regions:

The colormap uses the Escape-Time Algorithm to provide a cool visualization of the complex plane.

Running the Project

See my project Github for source code.

Future Improvements

  • Implement GPU acceleration using CUDA.
  • Optimize frame generation with better load balancing.
  • Enable dynamic thresholding to improve visualization quality.
  • Reuse computation between frames.
